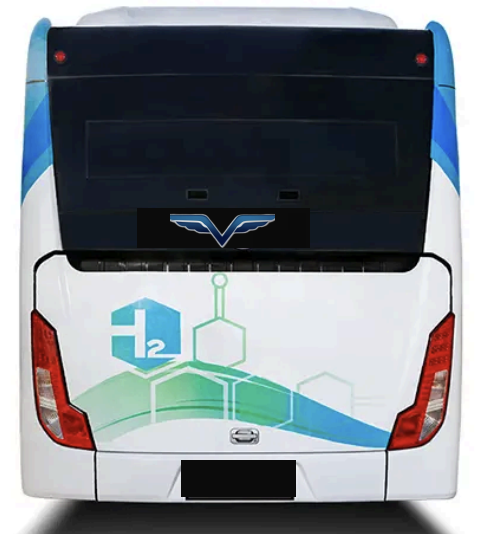

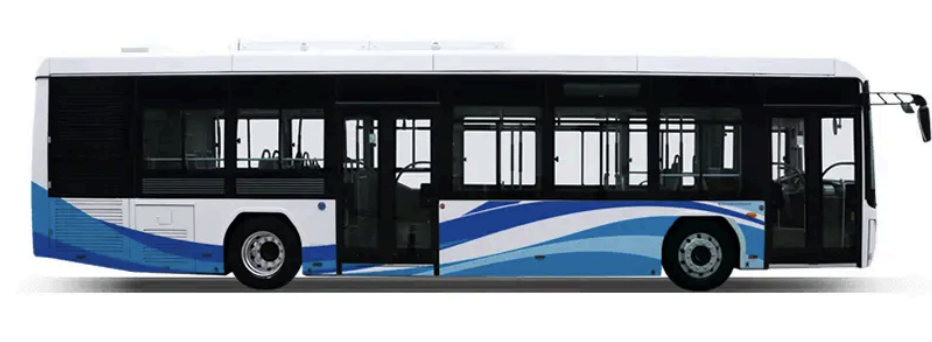

City Bus H1

Moja Auto H1 City Bus – Key Specifications
General Information
Model: BJ6891

Driver Position: Right-hand drive

Dimensions (L × W × H): 9100 × 2435 × 3100 mm

Wheelbase: 5010 mm

Ground Clearance: 250 mm

GVW: 8.75 T

Max Gross Weight: 13 T

Seats: 36 (passenger)

Inner Height: 1820 mm

Gradeability: ≥30%

Braking Distance (30 km/h, full load): ≤9 m

Noise Level (50 km/h): ≤78 dB(A)

Electromotor & Battery
Motor Model/Brand: FTTB095C

Motor Type: Permanent magnet synchronous, water-cooled

Rated Power: 95 kW

Battery Brand: EVE

Battery Type: Lithium iron phosphate (LFP)

Capacity: 256 kWh

Cooling System: Stand-alone battery cooling system

Cruising Range (Max): 300 km

Charging: Slow charge, national standard 9-core socket

Battery Warranty: 8 years / 600,000 km

Vehicle Warranty: 5 years / 400,000 km

Chassis
Front Axle: Fangsheng 4.5T

Rear Axle: Fangsheng 9.5T

Brakes: Drum brakes (front & rear)

ABS: WABCO ABS system

Suspension: Leaf spring suspension

Tyres: 255/70R22.5

Steering: China brand

Body & Interior
Frame: Monocoque body frame

Passenger Doors: Two inward-swinging front doors

Windows: Laminated safety glass (front), tempered glass (rear), sliding side windows

Seats: 35 passenger seats (imitation leather, 2-point safety belt), mechanical driver seat

Floor: Bamboo with anti-wear leather covering

Handrails: Stainless steel, 32 mm diameter

Safety Equipment: 2 × 5 kg fire extinguishers, safety hammers, reversing radar

Electricals: CAN dashboard, MP3 audio, 150W wipers, long strip interior lights

Climate Control: Natural air defrosting (no A/C)

Paint: Chinese brand

⚡ Highlights for Kenyan Market
Range: 300 km per charge – suitable for Nairobi city routes.

Capacity: 36 seats, optimized for urban commuting.

Durability: 8-year battery warranty and 5-year vehicle warranty.

Safety: Equipped with WABCO ABS, fire extinguishers, and reversing radar.

Eco-Friendly: Zero emissions, supporting Kenya’s green transport initiatives.
